Druck DPI705E Series Handheld pressure and temperature indicator

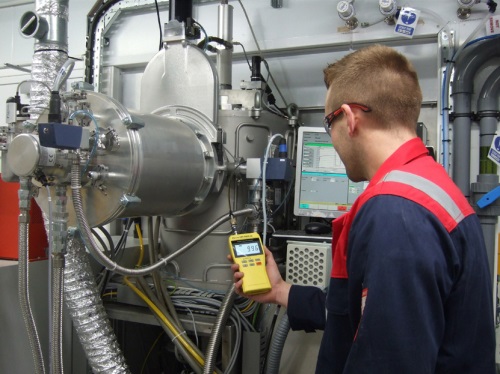

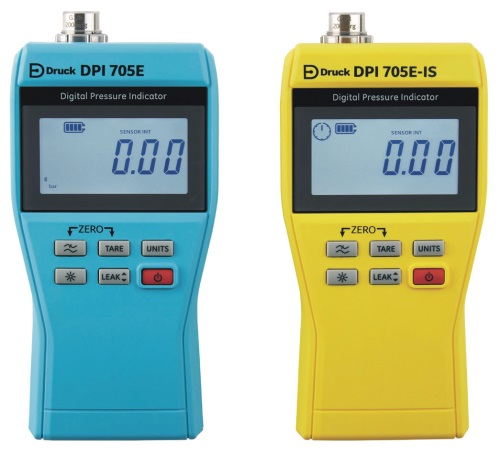

Druck DPI705E Series Handheld pressure and temperature indicator,Article from Druck,The Druck DPI705E Series of handheld pressure and optional temperature indicators combine tough and rugged design with accurate and reliable measurements.Building on its much loved predecessor, the DPI705E is an effective indicator that improves test efficiency. With a compact and robust design, the DPI705E Series is ideal for single handed operation in the field. Druck's indicator provides many essential features required for routine maintenance and system troubleshooting.
Druck DPI705E available in Shenzhen Yinfei
Features
•41 pressure ranges from ±25 mbar to 1,400 bar (±10 inH20 to 20,000psi/2.5 kPa to 140 MPa)
•Total 1 year uncertainty down to 0.025% full scale (FS) over temperature range of -10°C to +50°C
•Integral calibration record with calibration due count-down display
•Rugged, handheld design with backlit high-contrast display
•Leak test, tare, maximum/minimum and filter functions
•Hazardous Area (Intrinsically safe) version available

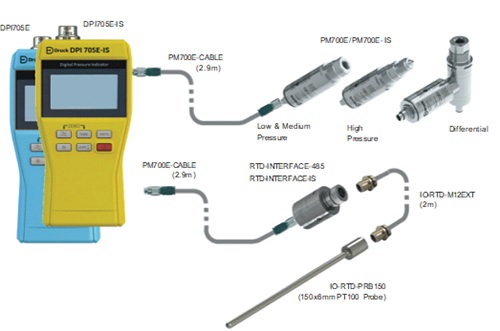

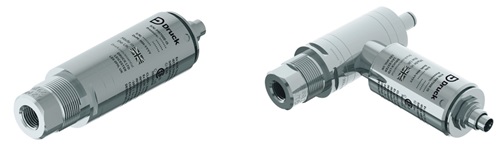

•Optional remote plug and play pressure (PM700E) and Resistance Temperature Detector(RTD-PROBE) sensors
•Compatible with our pneumatic and hydraulic hand pumps
|
DPI 705E Improves test efficiency
•Power on and use. No warm up time required.
•20 pressure measurement units (See below)
•1, 3 or 5 minute leak test
•Impact resistant, sealed to IP54
•Large digit high-contrast LCD with backlight
•Optional carrying case with belt loop
•Optional magnetic/loop hanging stra
•Long battery life
•Integral desk stand and hanger
•3 Levels of accuracy
Special features
Pressure units
mbar, bar, Pa, kPa, hPa, MPa,psi , lb/ft2, kgf/cm2, kgf/m2,mmHg(0°C), mHg(0°C), inHg 0,mmH2O, cmH2O, mH2O,
inH2O (4°C, 20°C), ftH2O (4°C, 20°C)
Calibration certificates
•Supplied as standard in bar,psi and kPa
•Optional UKAS accredited calibration available
Leak test
Used to determine if there is a leak in the system by recording the pressure change over a fixed time.Leak test can also be used with the RTD sensor to record a temperature change over time.User defined 1, 3 or 5 minute leak test with live countdown timer.
Maximum/minimum
Captures both maximum and minimum readings in peak-hold mode.
Zero
Zero pressure correction (gauge/differential sensors)
|
Filter
Enables a filtered pressure reading by showing a rolling average of the last 10 measurements. Providing a more stable reading in a noisy measurement.
Alarm
User adjustable high and low pressure alarms with visual (Bell Icon, Pressure Reading and Backlight flash) and audible warning for 60 seconds.
Calibration
Used in conjunction with the optional pneumatic or hydraulic hand pumps, the DPI 705E Series provides a simple, low-cost calibration solution.
Battery
•4xAA Alkaline/NiCd/NiMH cells
•Ultra power efficient design, can be used for 8 Hours
per day, 6 days per week for up to a year using a single set of batteries.
Display
16mm digital height LCD with ±99999 readout
Hazardous area approvals
•ATEX, IECEx, UKEX, CSA, CCOE, XPL, KCs, NEPSI, ECASEx (Ordering code ‘H1’)
•INMETRO (Ordering code ‘H2’)
•ATEX, IECEx, UKEX, CCOE, XPL, KCs, NEPSI, ECASEx, INMETRO: Ex ia IIC T4 Ga (–10°C ≤ Ta ≤ +50°C)
•CSA approved (Canada & US): Class I, Zone 0, AEx/Ex ia IIC T4 Ga (–10°C ≤ Ta ≤ +50°C)
|
| DPI 705E Internal pressure sensor availability | PM 700E External pressure sensor availability | |||||
| Type |
Internal (1) Standard |
Internal (2) High |
Internal (3) Premium |
Remote (1) Standard |
Remote (2) High |
Remote (3) Premium |
| 25 mbar / 10 inH2O / 2.5 kPa | G, L | - | - | G, L | - | - |
| 70 mbar / 1 psi / 7 kPa | G, L | - | - | G, L | - | - |
| 200 mbar / 3 psi / 20 kPa | G, L | - | - | G, L | - | - |
| 350 mbar / 5 psi / 35 kPa | G, A, L | G, L | - | G, A, L | G, L | - |
| 700 mbar / 10 psi / 70 kPa | G, A, L | G, L | - | G, A, L | G, L | - |
| 1 bar / 15 psi / 100 kPa | G, A, L | G, A, L | - | G, A, L | G, A, L | - |
| 750-1150 mbar / 11-17psi /75-115 kPa (Barometric) | B | B | - | B | B | - |
| 2 bar / 30psi / 200 kPa | G, A, L | G, A, L | G,L | G, A, L | G, A, L | G,L |
| 3.5 bar / 50psi / 350 kPa | G, A | G, A | G | G, A | G, A | G |
| 7 bar / 100 psi / 700 kPa | G, A | G, A | G | G, A | G, A | G |
| 10 bar / 150 psi / 1000 kPa | G, A | G, A | G, A | G, A | G, A | G, A |
| 20 bar / 300 psi / 2 MPa | G, A | G, A | G, A | G, A | G, A | G, A |
| 35 bar / 500psi / 3.5 MPa | G, A | G, A | G, A | G, A | G, A | G, A |
| 70 bar / 1000 psi / 7 MPa | G, A | G, A | G, A | G, A | G, A | G, A |
| 100 bar / 1500 psi / 10 MPa | G, A | G, A | G, A | G, A | G, A | G, A |
| 135 bar / 2000 psi / 13.5 MPa | G, A | G, A | G, A | G, A | G, A | G, A |
| 200 bar / 3000 psi / 20 MPa | G, A | G, A | G, A | G, A | G, A | G, A |
| 350 bar / 5000 psi / 35 MPa | A | A | A | A | A | A |
| 700 bar / 10000 psi / 70 MPa | A | A | A | A | A | A |
| 1000 bar/ 15000 psi/ 100 MPa | - | - | - | A | A | A |
| 1400 bar / 20000 psi / 140 MPa | - | - | - | A | A | A |
G = Gauge L = Differential A = Absolute B = Baro
Note: All differentials calibrated down to negative Full Scale (limited to -1bar)
Negative calibration option (OP1) (Gauge sensors)
| Full Scale Pressure Range | Standard and High Accuracy sensors | Premium accuracy sensors |
| 25 mbar to 1 bar/10 inH2O to 15 psi/100 kPa to 2.5 kPa | Available down to negative Full Scaleby default | Not available |
| 1 bar to 20 bar/15 psi to 300 psi/20 kPa to 2 MPa | Available down to-1 bar gas option OP1 | Available down to-1 bar g by default |
| 35 bar to 200 bar/500 psi to 3000 psi/3.5 MPa to 20 MPa | Not available – calibrated down to 0 bar g | Not available – calibrated down to 0 bar g |
Accuracy levels
1. Standard: ±0.1% FS Total accuracy over -10 to 50 degrees C including NLH&R,1 year drift and calibration uncertainty
2. High: ±0.05% FS Total accuracy over -10 to 50 degrees C including NLH&R,1 year drift and calibration uncertainty
3. Premium: ±0.025% FS Total accuracy over -10 to 50 degrees C including NLH&R,1 year drift and calibration uncertainty
Plug and play remote sensor rangePressure fittings
Media compatibility,Sensors up to and including 3.5bar (including differential) are exposed, 7-1400bar are diaphragm isolated; Internal and remote sensors are fitted with pressure connectors as detailed below:
• P1 - G1/8 Female direct sensor connection of instrument, welded non-removable (for ranges 200 bar and below) with optional adaptor:
• P2 - G1/4 Female adaptor that goes into the instruments G1/8 female
• P3 - 1/8 NPT Female adaptor that goes into the instruments G1/8 female
• P4 - 1/4 NPT Female adaptor that goes into the instruments G1/8 female
• P5 - Quick-Fit adaptor comes with G1/8 and 1/8 NPT adaptors
• P6 - 9/16x18 UNF Male direct sensor connection of instrument, welded non-removable (mandatory for ranges greater than/equal to 350 bar)Differential reference port: Legris 4mm tubing adaptor.
