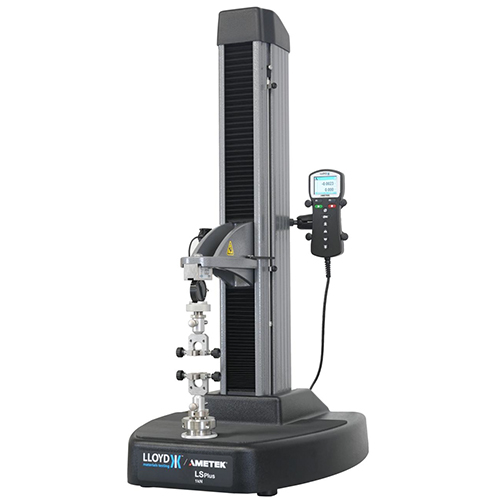

In the field of material performance evaluation, the demand for high-precision, reliable testing equipment is growing rapidly across industries such as manufacturing, quality control, and academic research. The AMETEK LLOYD LS1Plus Material Testing Machine, a flagship model in the AMETEK LLOYD LS+ Series of single-column test stands, stands out as a solution that balances advanced technology with practical usability. This AMETEK LLOYD Material Testing Machine is engineered to deliver accurate results for a wide range of material tests, from tensile strength measurements of polymers to compression tests of small metal components. To fully leverage its capabilities, understanding three core aspects is essential: the technical details and functional adaptability of its key hardware components, the design principles and practical operation norms of its safety protection system, and the collaborative working mechanism with the NexygenPlus 4 software. These aspects not only define the performance of the AMETEK LLOYD LS1Plus Material Testing Machine but also ensure its safe, efficient, and consistent operation in various testing environments.



The AMETEK LLOYD LS1Plus Material Testing Machine owes its exceptional performance to the meticulous design and integration of key hardware components, each tailored to meet the demands of precise material testing. At the heart of this AMETEK LLOYD Material Testing Machine is its high-stiffness single-column frame, a structural element that plays a critical role in minimizing side loading on test specimens. This stiffness is not merely a design choice but a necessity—during testing, even minor lateral deflection can introduce errors in load measurements, especially for low-force tests on delicate materials like textiles or thin plastics. The frame of the AMETEK LLOYD LS1Plus Material Testing Machine is dimensioned to support both standard and extended testing needs: the standard model offers a travel length of 500 mm (19.7 in), while the extended-travel version provides 800 mm (31.3 in), accommodating larger specimens or longer test cycles. Additionally, the frame’s width of 460 mm (18.1 in, excluding the console) and depth of 557 mm (21.9 in) ensure stability, while its base height of 108 mm (4.3 in) allows for easy integration with bench setups, a key feature for labs with limited space.



Complementing the frame is the crosshead assembly, a vital component that drives the application of force to specimens. The crosshead of the AMETEK LLOYD LS1Plus Material Testing Machine is powered by a high-performance servomotor paired with a precision ball screw. This combination enables a crosshead speed range of 0.01 to 2032 mm/min, a versatility that makes the AMETEK LLOYD Material Testing Machine suitable for diverse test types. For instance, slow speeds (eg, 0.01–10 mm/min) are ideal for creep testing, where materials are subjected to constant force over extended periods to measure deformation, while faster speeds (eg, 500–2032 mm/min) are used for high-velocity tensile tests to simulate real-world impact conditions. The crosshead’s return speed is a consistent 2032 mm/min (80 in/min), a design choice that reduces test cycle time—a critical advantage for production quality control lines where high throughput is required. The position repeatability of the crosshead is less than 10 microns, ensuring that each test is conducted under identical spatial conditions, a key factor in achieving reproducible results.



Another indispensable hardware component of the AMETEK LLOYD LS1Plus Material Testing Machine is its interchangeable load cell. This AMETEK LLOYD Material Testing Machine uses load cells that exceed international standards such as ASTM, BS, and DIN, guaranteeing accuracy across a wide range of force measurements. The load cell for the AMETEK LLOYD LS1Plus Material Testing Machine has a capacity of 1000 N (225 lbf), making it suitable for testing medium-strength materials like most plastics, rubbers, and small metal parts. Its accuracy is impressive: ±0.5% of the reading down to 1/100 of its full capacity, meaning even small forces (eg, 10 N) are measured with high precision. A 32-bit A/D converter further enhances performance by providing a minimum load resolution of 1 part in 10⁹, ensuring that subtle changes in force—such as the yield point of a material, where deformation transitions from elastic to plastic—are detected reliably. The installation of the load cell is designed for ease of use: operators insert the load cell adapter through the crosshead’s hole (with the threaded side down), screw it into the load cell (taking care not to overtighten low-capacity models), align the load cell’s locating pin with the crosshead’s hole, and secure it with the provided “C” spanner. This process ensures that the load cell is properly aligned, preventing lateral forces from skewing measurements.



The handheld remote controller is a user-centric hardware feature of the AMETEK LLOYD LS1Plus Material Testing Machine that enhances operational convenience. This controller allows operators to start/stop tests and adjust the crosshead position without being tied to a computer, a valuable feature when positioning specimens or monitoring tests in real time. The height of the handheld remote is adjustable via a position-locking lever, enabling operators of different statures to use the AMETEK LLOYD Material Testing Machine comfortably. To connect the remote, operators simply plug its connector into the rear of the AMETEK LLOYD LS1Plus Material Testing Machine, a plug-and-play design that minimizes setup time. The controller’s interface is intuitive, with clearly labeled buttons for test control and crosshead movement, reducing the learning curve for new users—a key benefit for educational institutions or labs with high staff turnover.



Safety is a foundational design principle of the AMETEK LLOYD LS1Plus Material Testing Machine, with a comprehensive protection system that addresses various potential hazards, from mechanical pinch/crush risks to electrical shocks. This AMETEK LLOYD Material Testing Machine’s safety features are not just add-ons but integral to its operation, ensuring that operators, bystanders, and the equipment itself are protected during testing.



The Emergency Stop Button is a critical safety component of the AMETEK LLOYD LS1Plus Material Testing Machine, designed to immediately mitigate unsafe conditions. When pressed, this button removes power from the motor drive of the AMETEK LLOYD Material Testing Machine, bringing the crosshead and other moving parts to a rapid stop. Unlike some safety systems that merely pause operation, the Emergency Stop Button of the AMETEK LLOYD LS1Plus Material Testing Machine is engineered to halt hazardous movements as quickly as possible, reducing the risk of injury from unexpected crosshead motion. To reactivate the machine after an emergency stop, operators must turn the button clockwise by one quarter turn—a deliberate action that ensures operators have resolved the unsafe condition (eg, a misaligned specimen, a blocked crosshead) before resuming testing. This design prevents accidental reactivation, a common cause of safety incidents in testing environments.



Complementing the Emergency Stop Button is the Safe Line Button, another key safety feature of the AMETEK LLOYD LS1Plus Material Testing Machine. Located on the left-hand side of the machine’s frame, the Safe Line Button initially illuminates to indicate that the crosshead motor circuit is ready but not yet energized. This visual cue informs operators that the AMETEK LLOYD Material Testing Machine is in a “standby” state, preventing accidental operation. To activate the machine, operators press the Safe Line Button, which turns off the light—signaling that the AMETEK LLOYD LS1Plus Material Testing Machine is now operational. A critical norm for using this button is that operators must ensure the button is illuminated and the machine is not moving before reaching into the crosshead area. This rule prevents pinch/crush injuries, as the illuminated button confirms that the crosshead motor is not energized, eliminating the risk of unexpected movement during specimen handling.



Electrical safety is another core focus of the AMETEK LLOYD LS1Plus Material Testing Machine’s design. This AMETEK LLOYD Material Testing Machine uses electrical cables that transmit control signals, power, and sensor data—damage or disconnection of these cables can lead to an “open loop” condition, where the machine loses control of the crosshead, causing it to move rapidly to its extreme positions. To prevent this, the AMETEK LLOYD LS1Plus Material Testing Machine’s safety guidelines mandate that all cables, particularly transducer cables (which carry load cell data), be protected from damage. Operators must not route cables across the floor without protective covers (eg, cable ramps) to avoid tripping hazards and physical damage, nor suspend cables overhead under excessive strain, which can lead to breakage. Where cables bend around corners or pass through wall openings, padding must be used to prevent chafing—a common cause of cable deterioration over time. Additionally, the AMETEK LLOYD LS1Plus Material Testing Machine requires that operators disconnect the mains power before removing any electrical safety covers or replacing fuses. This norm is non-negotiable, as it eliminates the risk of electric shock, a severe hazard in testing environments. After maintenance, covers must be refitted immediately to maintain electrical insulation.



Mechanical safety norms for the AMETEK LLOYD LS1Plus Material Testing Machine also address pinch/crush hazards during specimen handling. The AMETEK LLOYD Material Testing Machine’s guidelines specify that only one person should operate the system at a time—multiple operators can lead to conflicting control inputs, increasing the risk of accidental crosshead movement. Before working in the hazard area between the grips or fixtures, operators must confirm that no other personnel can access the computer or system controls, a step that prevents unintended operation. When installing or removing specimens, operators must keep clear of the grip jaws and the crosshead’s path of movement. The crosshead should be moved at slow speeds and, where possible, at a low force setting during these tasks—minimizing the impact force if accidental contact occurs. For rotating components (eg, parts of the servomotor assembly), the AMETEK LLOYD LS1Plus Material Testing Machine’s safety rules prohibit operation with covers removed. If covers must be removed for maintenance, operators must first disconnect the mains power, and power must not be reconnected until the covers are refitted. This prevents injuries from rotating parts and electrical shock.



Extreme temperature testing—common for materials like metals (high-temperature tests) or polymers (low-temperature tests)—introduces additional hazards, which the AMETEK LLOYD LS1Plus Material Testing Machine’s safety system addresses. This AMETEK LLOYD Material Testing Machine is often used with ovens, furnaces, or cryogenic chambers to simulate extreme environments (temperatures above 60°C/140°F or below 0°C/32°F). The safety guidelines for the AMETEK LLOYD LS1Plus Material Testing Machine require operators to wear protective clothing, such as heat-resistant or cold-resistant gloves, when handling equipment at these temperatures. Additionally, a warning notice must be displayed near the machine whenever temperature control equipment is in use, alerting bystanders to the hazard. Operators must also be aware that extreme temperatures can affect areas beyond the immediate test zone—for example, heat from an oven can warm nearby surfaces, increasing the risk of burns. Adhering to these norms ensures that both operators and those in the vicinity are protected from temperature-related injuries.



The performance of the AMETEK LLOYD LS1Plus Material Testing Machine is significantly enhanced by its seamless collaboration with NexygenPlus 4, a Microsoft Windows-based software designed specifically for material testing applications. This synergy between hardware and software is a defining feature of the AMETEK LLOYD Material Testing Machine, enabling it to conduct automated, standardized, and customizable tests with ease.



One of the key aspects of this collaboration is the software’s pre-programmed test library, which aligns with international standards—an essential feature for the AMETEK LLOYD LS1Plus Material Testing Machine to meet industry-specific requirements. NexygenPlus 4 includes a comprehensive range of pre-configured test setups for common materials and test types, such as ASTM D638 for tensile testing of plastics, ISO 527 for polymer testing, and BS EN 13892 for testing concrete specimens. This library eliminates the need for operators to manually program test parameters, reducing the risk of human error and ensuring compliance with global standards. When using the AMETEK LLOYD LS1Plus Material Testing Machine, operators simply select the appropriate standard from the software, and NexygenPlus 4 automatically configures the AMETEK LLOYD Material Testing Machine’s parameters—such as crosshead speed, force limits, and data acquisition intervals—to match the standard’s requirements. For example, when testing a plastic specimen to ASTM D638, the software sets the crosshead speed to 50 mm/min (a common requirement for the standard) and configures the machine to stop when the specimen breaks, ensuring accurate measurement of tensile strength and elongation at break.



The ability to create customized test procedures is another critical element of the NexygenPlus 4 and AMETEK LLOYD LS1Plus Material Testing Machine collaboration. While pre-programmed standards cover most common tests, some applications—such as research on novel materials or specialized industrial tests—require unique parameters. NexygenPlus 4 addresses this need with a user-friendly step-by-step setup wizard that guides operators through creating custom tests. Operators can define parameters such as crosshead speed profiles (eg, variable speeds for multi-stage tests), force hold times (for creep or stress relaxation tests), and stop conditions (eg, a specific strain value or a percentage drop in force). Once a custom test is created, it is saved in the software’s library, allowing for repeated use with the AMETEK LLOYD LS1Plus Material Testing Machine. This flexibility makes the AMETEK LLOYD Material Testing Machine suitable for research environments, where testing requirements often evolve as projects progress. For instance, a researcher studying a new biodegradable polymer can create a custom test that applies a constant force for 1000 hours (to measure long-term creep) and then increases the force until the specimen breaks (to measure residual strength)—all controlled seamlessly by NexygenPlus 4.



Data acquisition and analysis are areas where the collaboration between NexygenPlus 4 and the AMETEK LLOYD LS1Plus Material Testing Machine truly shines. The AMETEK LLOYD LS1Plus Material Testing Machine transmits data to the software at a rate of 1 kHz, ensuring that even rapid changes in force or displacement—such as the sudden drop in force when a brittle material breaks—are captured in real time. NexygenPlus 4 processes this data instantly, generating detailed graphs (eg, force-displacement, stress-strain, and force-time curves) that provide visual insights into material behavior. The software also automatically calculates key material properties, such as elastic modulus (stiffness), yield strength, compressive strength, and fatigue life, eliminating the need for manual calculations. For example, after a compression test on a metal component using the AMETEK LLOYD LS1Plus Material Testing Machine, NexygenPlus 4 analyzes the force-displacement curve to determine the compressive modulus (the slope of the linear portion of the curve) and the maximum compressive force (the peak of the curve), presenting these values in a clear, easy-to-read report.



Data export functionality is another important aspect of the software-hardware collaboration for the AMETEK LLOYD LS1Plus Material Testing Machine. NexygenPlus 4 allows operators to export test data to Microsoft Excel or Microsoft Word, two widely used applications for data manipulation and report generation. This feature enables operators to further analyze data (eg, perform statistical analysis of multiple test runs) or create customized reports for clients, regulators, or internal teams. For example, a quality control engineer using the AMETEK LLOYD LS1Plus Material Testing Machine to test batches of metal fasteners can export data from 50 test runs to Excel, calculate the average tensile strength and standard deviation, and create a chart comparing the results to the product’s specification limits. This integration with common software tools reduces workflow time, as operators do not need to manually transfer data between systems—a common source of errors and delays.



The software also plays a key role in maintaining the performance of the AMETEK LLOYD LS1Plus Material Testing Machine through firmware and software updates. AMETEK regularly releases updates for NexygenPlus 4 and the AMETEK LLOYD LS1Plus Material Testing Machine’s firmware, which include bug fixes, performance improvements, and new features (eg, support for new test standards or enhanced data analysis tools). Operators can access these updates by registering the AMETEK LLOYD LS1Plus Material Testing Machine on AMETEK’s website, a process that also provides access to full product support. NexygenPlus 4 includes a feature that notifies operators of available updates, ensuring that the AMETEK LLOYD Material Testing Machine and software are always running the latest version. This proactive update mechanism helps maintain the accuracy and reliability of the AMETEK LLOYD LS1Plus Material Testing Machine over time, ensuring that it continues to meet testing requirements as standards and technologies evolve.



The AMETEK LLOYD LS1Plus Material Testing Machine’s ability to deliver precise, reliable results stems from the seamless integration of its key hardware components, robust safety protection system, and collaborative partnership with NexygenPlus 4 software. Each of these aspects is designed to address the unique challenges of material testing, from ensuring accurate measurements to protecting operators and maintaining compliance with global standards. The high-stiffness frame, precision crosshead, and interchangeable load cell form the hardware backbone of this AMETEK LLOYD Material Testing Machine, while the Emergency Stop and Safe Line Buttons, along with electrical and mechanical safety norms, create a secure operating environment. The synergy with NexygenPlus 4, meanwhile, simplifies test setup, enhances data analysis, and ensures adaptability to diverse testing needs. For industries and research institutions seeking a versatile, safe, and high-performance material testing solution, the AMETEK LLOYD LS1Plus Material Testing Machine stands as a trusted choice, capable of meeting the evolving demands of modern material science and quality control.
